Nice photos! Quite an interesting cargo, thanks for posting them.
My Photostream
|
|
Rank: Advanced Member
Groups: Member
Joined: 6/5/2007
Posts: 2,774
Location: Sarasota, Florida, USA
|
Thanks for the pics, that was great!!!
I saw a 50 Ton GE one year and the guys who ran it thought it was a dog compared to the Alco they had!!
I like the look of that puppy dog too, that DM is in really good shape!!
Dain
I'm a kid at heart, so I will play with any model construction vehicle from 1:87 scale to 1:1 scale!!!!
Age is a state of time NOT a state of mind!!
|
|
Rank: Advanced Member
Groups: Member
Joined: 3/14/2006
Posts: 279
Location: Sterling Hgts, Mi.
|
Thanks for the pictures John. I really like the little GE's. I'm sure this will look great after restoration. Would you tell us a little about this Mack tractor. To me, I would say it is in the DM-800 family, but a lot bigger than the normal road tractor, so maybe like a DM-880? And if it had planetary rears would it have a higher model number too? And last, what engine are you running in this one?
Thanks again for all your post, as they are always very interesting. Dan
|
|
Rank: Advanced Member
Groups: Member
Joined: 12/23/2007
Posts: 346
Location: New Jersey
|
DanielD wrote:Thanks for the pictures John. I really like the little GE's. I'm sure this will look great after restoration. Would you tell us a little about this Mack tractor. To me, I would say it is in the DM-800 family, but a lot bigger than the normal road tractor, so maybe like a DM-880? And if it had planetary rears would it have a higher model number too? And last, what engine are you running in this one?

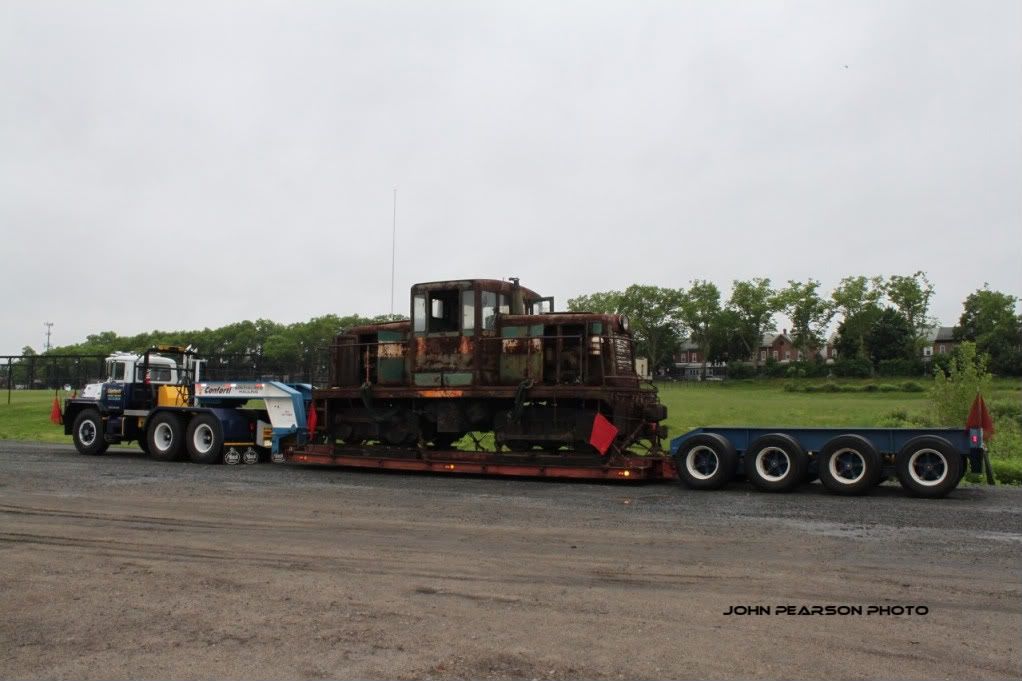

Thanks again for all your post, as they are always very interesting. Dan Dan, The tractor is a 1980 Mack DM821SX, factory E9-V8 400 hp & 12 speed Mack transmission. It originally had a 20K front and 65K rears, but we rebuilt the truck over a few years time and installed 80K Mack rears from a 1973 DM800, as well as a 23K front axle. The original tires were 12x24, but we changed them over to 14x24 Michelin XMP Radials. Planetaries were available in the DM822, and many RD822s as well were so equipped. The model designation and numbers were for the most part engine based, and had really nothing to do with drive train. For example before 1986, The DM821 would be an E9-400, and a DM822 would be an E9-440. Mack used different number codes for other Mack Engines, and another group of numbers for Cat and Cummins powered units. In 1985-86, Mack changed their numbering codes again, and it became even more difficult to understand. -John
|
|
Rank: Advanced Member
Groups: Member
Joined: 2/8/2008
Posts: 4,174
Location: Anchorage, AK
|
Crane, great looking truck and the load is a locomotive. Doesn't get much better...
|
|
Rank: Advanced Member
Groups: Member
Joined: 6/1/2006
Posts: 4,065
Location: Dublin Ireland
|
ulf wrote:Crane, great looking truck and the load is a locomotive. Doesn't get much better... you said it Ulf  Fantastic snaps,TFS
Why is "phonetically" spelt with a "ph"? ... It's better to be silent and thought a fool, then to speak up and remove all doubt The complex of Newgrange was originally built between c. 3100 and 2900 BC,[2] meaning that it's aproximately 5,000 years old. According to Carbon-14 dates,[3] it is more than 500 years older than the Great Pyramid of Giza in Egypt, and predates Stonehenge by about 1,000 years.
|
|
Rank: Advanced Member
Groups: Member
Joined: 8/8/2002
Posts: 5,515
Location: New Jersey
|
Nice pics luv the DM one sweet truck and loco !
Chet
I live in my own little world it's ok they know me here
|
|
Rank: Advanced Member
Groups: Member
Joined: 3/17/2006
Posts: 1,169
Location: NJ
|

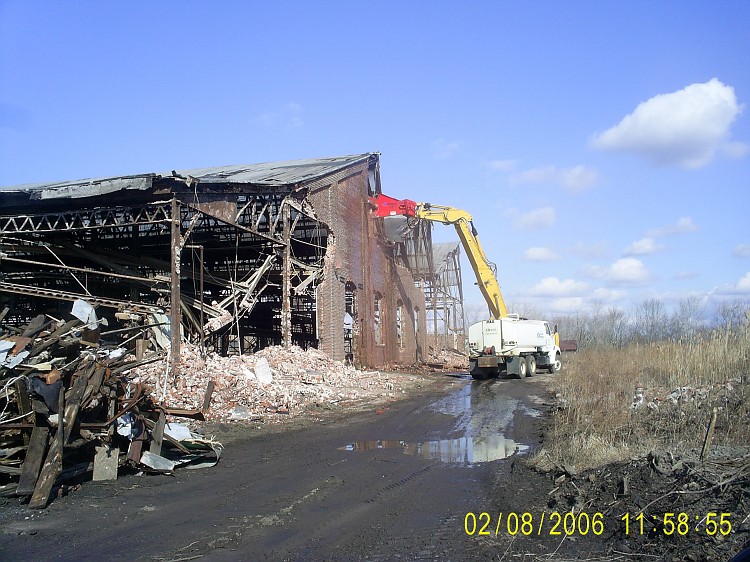

Great pics John! Unfortunately like I said I was extremely sorry to miss the whole move due to breaking down and moving the 345 clam. My buddy and I cut down the huge wire mill #1 around that little loco. It was parked right up against the loading dock where they must of shut her down some 35 years earlier. Glad she was saved.
We rally round the family, with a pocket full of shells.....
|
|
Rank: Advanced Member
Groups: Member
Joined: 12/23/2007
Posts: 346
Location: New Jersey
|
Joe,
It is truly amazing how much that place has changed. I was last there in 2003, making preparations to move the 100 ton GE switcher out. I was on my honeymoon in Hawaii when it was finally moved.
Monday was the first time I had been behind the fence since 2003. I could not even recognize the place. It must have been a really bad site to think they have been there almost 10 years now actively cleaning it up. My brother toured a lot of the mill before they really got into the demolition phase. He said it was a sight to see.
Looks like the 80 ton GE will be getting cut soon too. At least a couple of the pieces from there have been saved.
-John
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/23/2009
Posts: 791
|
Very nice... What is that, three foot gauge? It's always sad to see these old steel industries go, with the dedicated rail system and everything.
Dave
|
|
Rank: Advanced Member
Groups: Member
Joined: 6/30/2003
Posts: 4,920
Location: Melbourne, Australia
|
I don't think I'll ever get tired of seeing pictures of that truck. Great to hear this little loco went into a trust. Rowan.
1:25th scale CAT 375L excavator
|
|
Rank: Advanced Member
Groups: Member
Joined: 3/23/2010
Posts: 701
Location: Washington, DC
|
The truck still looks amazing after 31 years and can still do its thing when asked. That is why it is always fun to see Frank's working collection. We could attribute this to the Mack engineering of old but believe that your and Frank's mechanical efforts fit in their as well.
Glad to see that you got outside and had the opportunity to do a move for a change of pace.
|
|
Rank: Advanced Member
Groups: Member
Joined: 3/17/2006
Posts: 1,169
Location: NJ
|
APmadden bump
We rally round the family, with a pocket full of shells.....
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/1/2005
Posts: 1,417
Location: Wayne, NJ
|
Excellent thread. Can't go wrong with old steel mill + Conforti DM800 + locomotive. I winning combination, to be sure!
- Andy
|
|
Rank: Advanced Member
Groups: Member
Joined: 8/3/2007
Posts: 1,463
Location: washington
|
Great pictures and that is one good looking Mack......
William.....
|
|
Rank: Advanced Member
Groups: Member
Joined: 4/3/2003
Posts: 2,147
Location: Rockford,IL.
|
Great pictures. I am glad to see the Mack still working. I moved a GE switch locomotive in 1995 for Vulcan Materials. I will see if I can fnd the pictures. Ken
|
|
Rank: Advanced Member
Groups: Member
Joined: 6/14/2007
Posts: 978
Location: Eureka
|
Thanks for posting this. One of my favorite trucks.
Robert
|
|
Rank: Advanced Member
Groups: Member
Joined: 3/14/2006
Posts: 279
Location: Sterling Hgts, Mi.
|
John, Thank you so much for the information on this DM821SX, and sorry for not getting back to thank you sooner, as I was out to South Bend to the ATHS show. Of course it was great.
All the best, Dan
|
|
Rank: Advanced Member
Groups: Member
Joined: 12/21/2007
Posts: 2,895
Location: Eastern Pennsylvania
|
Nice pics John and your brother Dave. I came across Roebling steel on maps before, I am surprised it lasted that long with U.S. steel not that far away. Anyway Roebling has a little museum at the entrance of the mill, I think they have straddle carrier there, along with another GE switcher, and various mill peices.
