Rank: Advanced Member
Groups: Member
Joined: 4/27/2006
Posts: 2,826
Location: Carmarthen, Wales, UK
|
This is how the boom will be put together. First section of boom 25m. Next two will be 21m with a 3m overlap so extends only 18m. 3m extension, 11m dipper and then a 9m dipper. With the added dipper only a 5t tool. Remove the extra dipper and only extend to 70m a 10t tool can be fitted. This monster will be working at the beginning of Feb 2008.
|
|
Rank: Advanced Member
Groups: Member
Joined: 4/20/2007
Posts: 224
Location: UK,Plymouth
|
When are they going to give us pics of this machine?
|
|
Rank: Advanced Member
Groups: Member
Joined: 11/11/2006
Posts: 3,421
Location: UK
|
I dont get you, whos making it? whos it for?
Heavy Cranes
|
|
Rank: Advanced Member
Groups: Member
Joined: 6/13/2004
Posts: 1,506
Location: Bendigo - Victoria - Australia
|
Renaultman,
Is there any drawings about of the machine... Like Beelen had of there 395??
Regards
James Muldoon
From the Land Down Under
|
|
Rank: Advanced Member
Groups: Member
Joined: 4/27/2006
Posts: 2,826
Location: Carmarthen, Wales, UK
|
Too answer your questions Jack, it is an Euro demolition machine, the boom is being built by 'Rusch Kraantechneik'. There are no pictures of the machine as of now, but there is a computer generated picture in the September issue of Earthmovers page 85.
|
|
Rank: Advanced Member
Groups: Member
Joined: 4/20/2007
Posts: 224
Location: UK,Plymouth
|
could you scan the picture and post it because i have to go into town to buy that mag and dont really want to go into town just to get a mag.
|
|
Rank: Advanced Member
Groups: Member
Joined: 6/13/2004
Posts: 1,506
Location: Bendigo - Victoria - Australia
|

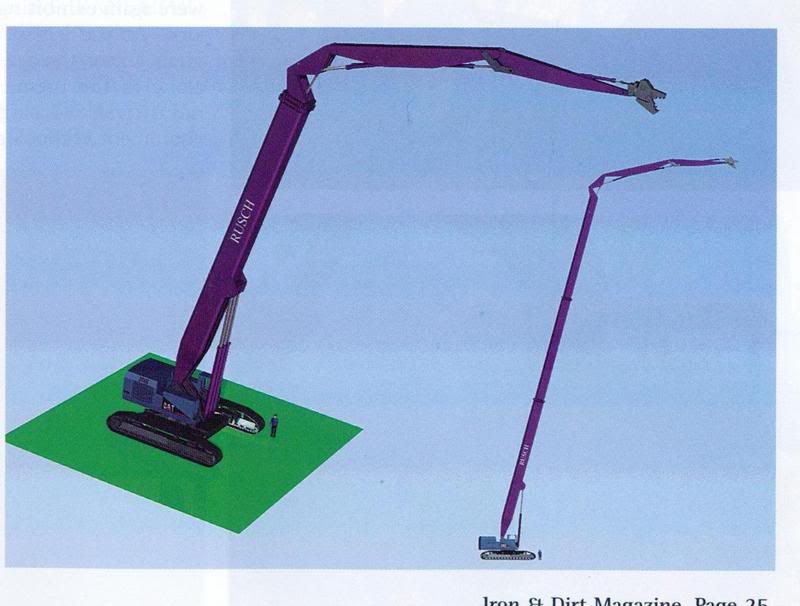

Guys, Look what i found.  Image from Iron & Dirt Mag. June 2007 90m in 1:50 is 1.8m... Approx 6 foot 2.. That is my height....
RegardsJames Muldoon From the Land Down Under
|
|
Rank: Advanced Member
Groups: Member
Joined: 9/6/2006
Posts: 675
Location: Southern Ontario Canada
|
samtheman whats with the spam adds in your boxes ? try and make money elsewhere its anoying
|
|
Rank: Advanced Member
Groups: Member
Joined: 7/9/2007
Posts: 314
Location: Yorkshire, UK
|
That operator will need binoculars!
|
|
Rank: Advanced Member
Groups: Member
Joined: 6/4/2006
Posts: 7,752
Location: arlington, Tx
|
Man you would need something to see that far up. operator is going to need binocs or camera system . jason
NIkl Scale Models
|
|
Rank: Advanced Member
Groups: Member
Joined: 6/24/2005
Posts: 1,167
Location: London
|
Someone at Cat told me this machine was being built.
I imagine it'll need a somewhat more skilled operator than that clown in the thread relating to the incident in Asia.
|
|
Rank: Advanced Member
Groups: Member
Joined: 7/21/2007
Posts: 1,765
Location: Derbyshire,UK
|
It says in Erthmovers that even though the official reach is 90m the operator will only be able to work at a height of about 50-70 metres safely.
Joe
|
|
Rank: Advanced Member
Groups: Member
Joined: 6/13/2004
Posts: 1,506
Location: Bendigo - Victoria - Australia
|
Renaultman,
Do you have any mesurement on the Car 5110b Tripple machine?
Wouldn't mind Custom making a model of it..
@ joe.
I believe 90m would be with boom Streched out. and normal working would be like in the pics i have posted. At right angle to the Vertical Boom.
Regards
James Muldoon
From the Land Down Under
|
|
|
